Sludge dehydrator filter press for industrial wastewater treatment (MDQ-105)

  • >=1 Sets
    $12,000.00
Model Number:
MDQ-101
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Place of Origin:
China
Brand Name:
TSURUMI HONGQI
Condition:
New
Applicable Industries:
Building Material Shops, Food & Beverage Factory, Retail, Construction works , Food & Beverage Shops
Item::
sludge dehydrator
Dry solid output::
6-9 Kg.Ds/h
Net weight::
400kg
Dimension::
1800X900X1800
Input power:
0.6kw
Voltage::
380v
Screw shaft dia::
400mm
Material::
carbon steel/ss
Certification::
ISO 9001/ BSi
Warranty::
One year
Supply Ability
Supply Ability:
100 Set/Sets per Month screw sludge dewatering machine
Packaging & Delivery
Packaging Details
According to customer requirements
Port
Qingdao





We are the"Volute sludge dewatering machine"  national industry standard  drafting units - Shandong Tsurumi Hongqi Environmental Technology Co.,



 Photos of MDQ-101

1. Integrated support cylider main shaft.


2.  High reduction ratio motors.


3.  Control box and Flocculation tank




 How to choose?

ModelStandard processing quantity(kg/h)Sludge flow(m3/h)
low concentrationhigh concentration5000mg/L20000mg/L
MDQ-101691.20.6
MDQ-10212182.41.2
MDQ-103182542
MDQ-104253552.5
MDQ-105305063
MDQ-201202541.5
MDQ-202405083
MDQ-2036070124.5
MDQ-20480100166
MDQ-205100120207.5
MDQ-40180100166
MDQ-4021601803212
MDQ-4032402604816
MDQ-4043203606424

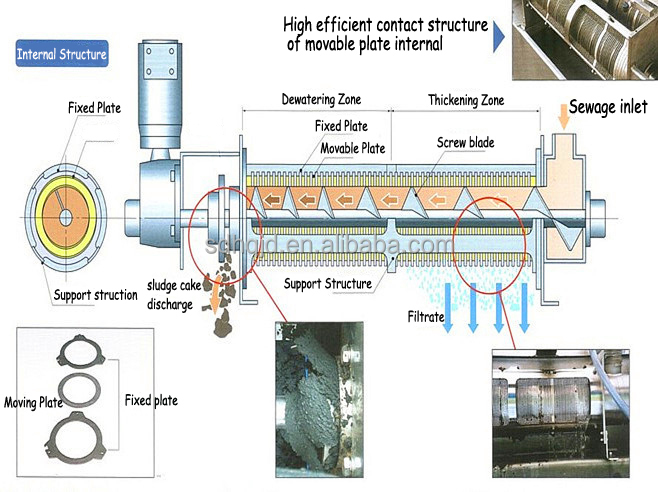

 How does it work ?



.jpg

Movable disc inner periphery           Dehydration Process                     Condensation Process
rubbing system

As the inner periphery of each
movable disc is touched with the
outer periphery of the screw blade
that let the discs rotate, the movable
discs always move, and this cleans
the clearance that filtrate passes
through. Therefore, it prevents the
clearances from plugging up and
shows stable treatment capacity.
Dehydration Process
The sludge, which is conveyed
by the screw, is compressed
consecutively since the screw
pitch is narrowed toward the
advanced direction. The sludge
is then discharged after being
compressed further by dam plate
that is installed at the end of the
cage.
Condensation Process
As for the condensation sludge
that flowed into the dehydrator,
its most of the water is
discharged outside of the
machine by gravity filtration
through the clearances (the
gap between fixed disc and
movable disc) of the multiplex
structure cage.

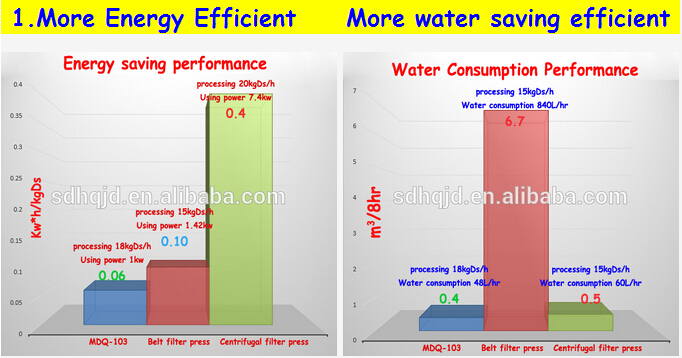

 Why choose Spiral dehydrator?




Our advantage

  Why choose us ?

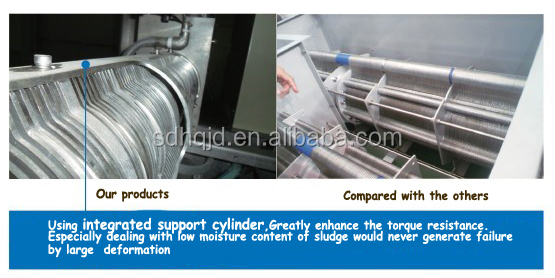

 2.Using integrated support cylider, More storng than others

 1 -.jpg

 3.Using Cemented Carbide imported from Japan.

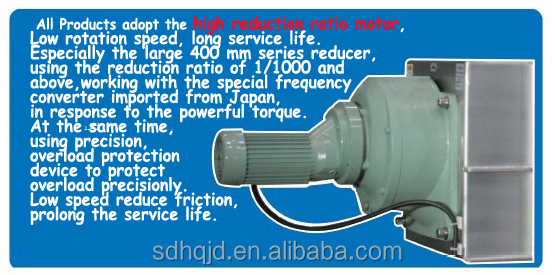

 4.Using high reduction ratio motor, prolong service life .
.jpg

 5. We are the"Volute sludge dewatering machine"  national

 industry standard  drafting units.




Product Description

Easy to Install + Energy Saving
As cooperation with Japan Tsurumi Manufacturing Company is the unit that carries related equipment and the control panel compactly, it is easy to install. It is also energy saving because of its low output.
Processing of the oil-containing sludge is possible.
As the structure is such that it is hard to be plugged up in the screen, it is suitable for processing oil-contained sludge such as dissolved-air flotation froth.
Processing of low concentration sludge is possible.
Since it is the structure of having both condensation and dehydration section, it is possible to process low condensation sludge (about 0.3%), which was difficult by the conventional dehydrators.
Continuous automatic operation is possible
Automatic operation can be done by one-touch operation.
Amount of washing water can be minimum.
Wash-water is necessary only for the cleaning of sludge that seeps out of the bowl. The volume of water consumed is the minimum.
Minimum secondary pollution + minimum maintenance
Since dehydrator itself is operated at low-speed rotation, there will be almost no fear for the noise pollution. At the same time, it is almost no need to carry out daily maintenance work because it operates automatically.

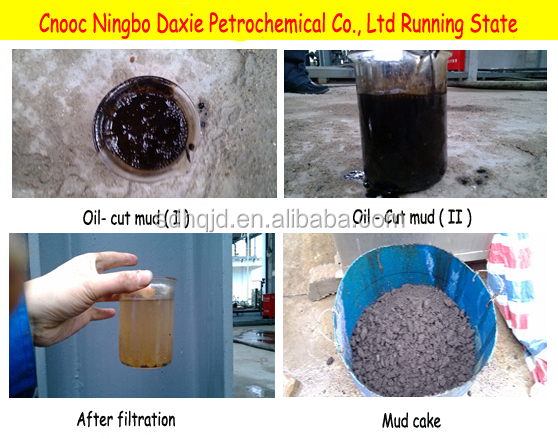

Application Case

 Where can be used ?

  1.Food Processing .


  2.Petro-refining .


   3.Biochemical pharmacy .

    4.Municipal sewage ect.
